How to Choose the Best Battery for Underwater Robots?

Underwater robots are becoming increasingly important in marine exploration, offshore inspection, underwater engineering, scientific research, and industrial applications.

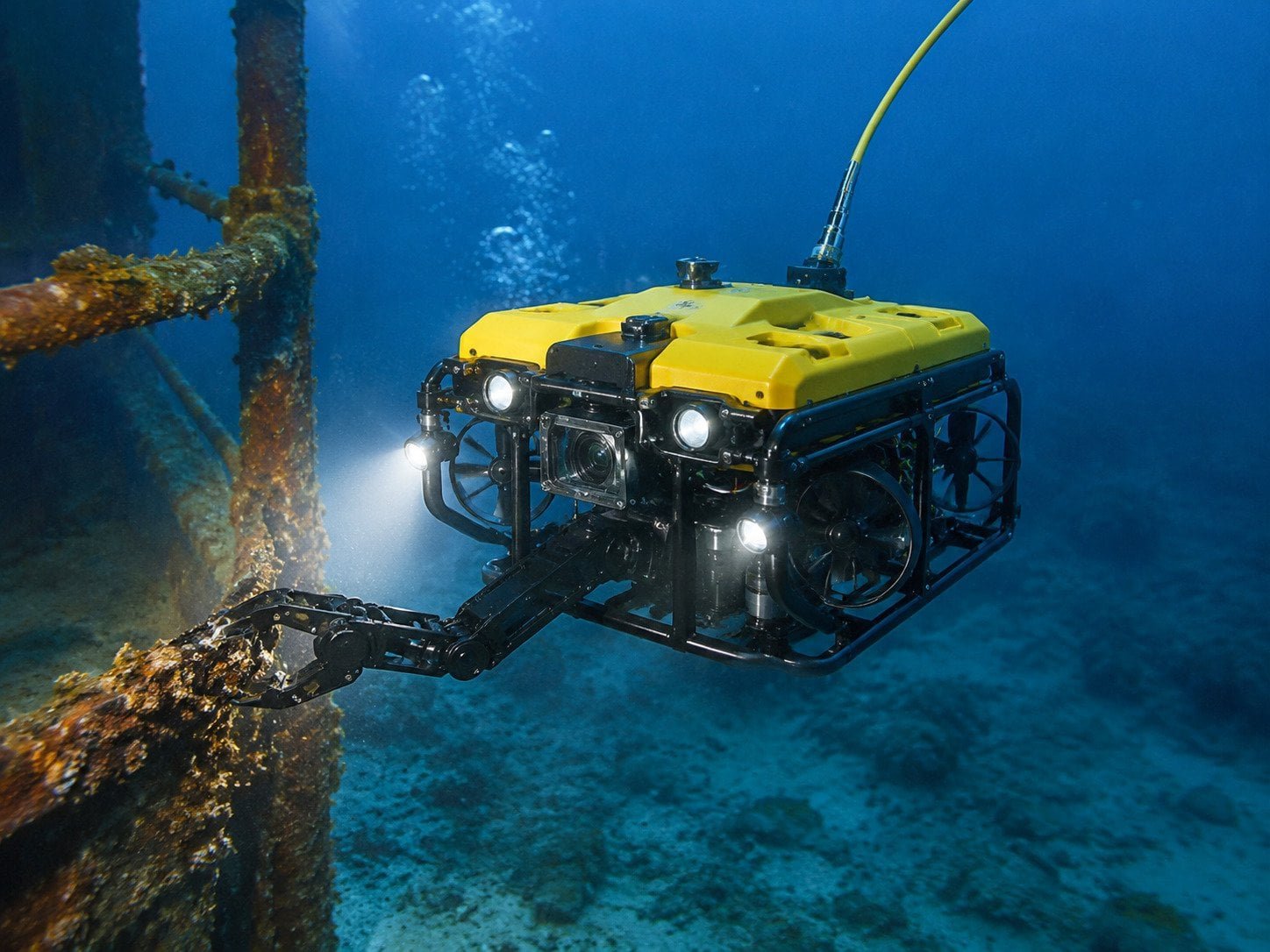

From ROV (Remotely Operated Vehicle) used for underwater inspection to AUV (Autonomous Underwater Vehicle) used for autonomous ocean exploration, the battery system is one of the most critical components that directly affects:

• Operating time
• Mission distance
• Safety performance
• Equipment reliability
• Maintenance cost

Unlike standard industrial equipment, underwater robots operate in challenging environments with:

• High water pressure
• Low temperature
• Saltwater corrosion
• Limited maintenance access
• Long operating cycles

Therefore, selecting the right battery requires more than simply choosing a high-capacity battery. Engineers need to consider the operating environment, robot type, mission requirements, fleet operation requirements, and long-term cost.

Part 1. Understand the Underwater Robot Application Before Selecting a Battery

The first step in battery selection is understanding how the underwater robot will be used.

Different applications require different battery characteristics.

ROV (Remotely Operated Vehicle) Battery Requirements

ROVs are remotely controlled underwater robots usually connected to a surface control system through a cable.

Typical applications:

• Ship inspection
• Offshore platform inspection
• Pipeline inspection
• Aquaculture monitoring
• Underwater maintenance

ROV battery requirements:

• Stable power output
• High discharge capability
• Reliable safety performance
• Waterproof protection
• Long service life

For inspection ROVs, the battery system needs to support:

• Thrusters
• Cameras
• Lighting systems
• Sonar equipment
• Sensors
• Communication systems

AUV (Autonomous Underwater Vehicle) Battery Requirements

AUVs operate independently without cables.

They are widely used for:

• Ocean mapping
• Marine research
• Deep-sea exploration
• Environmental monitoring

Since AUVs rely entirely on onboard batteries, energy density becomes extremely important.

Key battery requirements:

• High energy density
• Lightweight design
• Long endurance
• Reliable battery management system
• Accurate power monitoring

For long-range missions, battery capacity directly determines the underwater robot’s working distance.

Part 2. Select Battery According to Underwater Operating Environment

The underwater environment is one of the biggest challenges for battery systems.

1. Water Depth and Pressure Requirements

Water pressure increases with depth.

Approximately:

• 10 meters depth ≈ 1 bar additional pressure
• 100 meters depth ≈ 10 bar
• 1000 meters depth ≈ 100 bar

Deep-sea robots require special battery designs to handle extreme pressure.

Important considerations:

• Pressure-resistant housing
• Sealed battery enclosure
• Pressure compensation system
• Reliable connectors

For shallow-water robots:

• IP67/IP68 waterproof design may be sufficient

For deep-sea applications:

• Custom pressure-resistant battery modules are required

2. Temperature Conditions

Underwater environments often have lower temperatures than land environments.

Low temperature affects:

• Battery capacity
• Charging efficiency
• Internal resistance
• Discharge performance

A suitable underwater battery should consider:

• Low-temperature cells
• Temperature monitoring
• Heating systems if required

Recommended operating temperature:

• Standard: -20°C to 55°C
• Special applications: -40°C customized solutions

3. Saltwater Corrosion Protection

Marine environments contain salt and moisture, which can damage electronic components.

Battery design should include:

• Anti-corrosion enclosure
• Waterproof connectors
• Sealed terminals
• Marine-grade materials

Part 3. Choose the Right Battery Chemistry

Different lithium battery chemistries provide different advantages.

LiFePO4 Battery for Underwater Robots

Lithium iron phosphate (LiFePO4) is widely used in industrial marine applications.

Advantages:

High Safety

LiFePO4 has excellent thermal stability.

Suitable for:

• Long-term underwater operation
• Unmanned equipment
• Industrial inspection robots

Long Cycle Life

Typical cycle life:

For commercial underwater robot fleets, longer cycle life helps reduce replacement costs.

NMC Lithium Battery for AUV Applications

Nickel manganese cobalt (NMC) batteries provide higher energy density.

Advantages:

• More energy in smaller size
• Lightweight design
• Longer operating distance

Suitable for:

• Long endurance AUV
• Research underwater vehicles
• Space-limited designs

Part 4. Calculate Battery Capacity Based on Mission Requirements

Battery capacity should match the robot’s workload.

Basic formula:

Battery Energy (Wh) = Voltage (V) × Capacity (Ah)

Example:

An underwater robot requires:

• Voltage: 48V
• Average current: 15A
• Operating time: 6 hours

Required energy:

48V × 15A × 6h = 4320Wh

Battery capacity:

4320Wh ÷ 48V = 90Ah

Recommended solution:

48V 100Ah lithium battery pack

Additional capacity should be reserved for:

• Thruster startup current
• Temperature changes
• Battery aging
• Mission uncertainty

Part 5. Consider Fleet Operation Requirements

For companies operating multiple underwater robots, battery selection should focus on fleet management.

A reliable battery system should provide:

1. Consistent Battery Performance

For a robot fleet:

• Same voltage platform
• Same communication protocol
• Same charging system

Benefits:

• Easier maintenance
• Lower inventory cost
• Faster replacement

2. Fast Charging Capability

Commercial underwater robot fleets require efficient operation.

Important factors:

• Charging speed
• Charger compatibility
• Battery temperature monitoring

A good battery solution can reduce downtime between missions.

3. Smart Battery Management System

A professional underwater robot battery should include an intelligent BMS.

Functions include:

Safety Protection

• Overcharge protection
• Over-discharge protection
• Over-current protection
• Short-circuit protection
• Temperature protection

Communication

Support:

• CAN
• RS485
• UART
• Modbus

Real-time monitoring:

• SOC (State of Charge)
• SOH (State of Health)
• Voltage
• Current
• Temperature

Part 6. Waterproof Battery Pack Design for Underwater Robots

A battery pack is not only about cells.

A complete underwater battery solution includes:

Cell Selection

Options:

• 18650 lithium cells
• 21700 lithium cells
• LiFePO4 prismatic cells

Battery Structure Design

Including:

• Waterproof housing
• Shock protection
• Thermal management
• Marine-grade materials

Electrical Design

Including:

• BMS integration
• Fuse protection
• Charging interface
• Communication system

Part  7. Recommended Battery Solutions for Different Underwater Robots

Part 8. How to Choose a Reliable Underwater Robot Battery Manufacturer?

A professional battery manufacturer should provide:

Battery Pack Engineering

• Cell selection
• Electrical design
• Mechanical design
• BMS development

Testing Capability

Including:

• Charge and discharge testing
• Temperature testing
• Vibration testing
• Waterproof testing
• Safety testing

Custom OEM/ODM Capability

Different underwater robots have different requirements.

A customized battery solution can optimize:

• Battery size
• Weight
• Capacity
• Communication
• Installation structure

Conclusion: Choosing the Right Battery for Underwater Robots

The best battery for an underwater robot depends on multiple factors:

✔ Operating depth
✔ Water environment
✔ Mission duration
✔ Robot type
✔ Energy requirements
✔ Fleet operation needs
✔ Safety requirements

For most industrial underwater robots, a LiFePO4 battery pack with intelligent BMS, waterproof design, and customized structure provides a reliable solution.

For long-range AUV applications, high-energy-density lithium battery systems can help extend mission duration and improve operational efficiency.

Choosing the right underwater robot battery is not just selecting a battery cell. It is creating a complete power system designed for the challenges of the underwater world.

FAQ

Q1: What is the best battery for underwater robots?

LiFePO4 batteries are commonly used for industrial underwater robots because of their safety, long cycle life, and stable performance. NMC lithium batteries are suitable for applications requiring higher energy density.

Q2: Can lithium batteries be used underwater?

Yes. Lithium batteries can be used in underwater robots when they are installed in properly designed waterproof and pressure-resistant battery packs.

Q3: How long can an underwater robot battery last?

Battery runtime depends on capacity, robot power consumption, and mission requirements. Typical systems can operate from several hours to more than 24 hours with customized designs.

Q4: What voltage battery is used for ROV and AUV?

Common underwater robot battery voltages include:

• 12V
• 24V
• 36V
• 48V
• Custom voltage systems

Q5: Why use LiFePO4 batteries for underwater robots?

LiFePO4 batteries provide:

• High safety
• Long cycle life
• Stable discharge performance
• Low maintenance requirements

Making them suitable for commercial and industrial underwater applications.
