Robot dogs, also known as quadruped robots, require a battery system that can support dynamic movement, frequent acceleration, actuator loads, onboard computing, sensors and communication systems. Unlike batteries used in stationary equipment, a robot dog battery needs to respond to changing power demand while remaining within strict limits for weight, size and operating temperature.

For robot manufacturers and system integrators, selecting a lithium battery is not simply a matter of choosing a higher Ah rating. Battery chemistry, voltage, capacity, discharge current, BMS configuration, thermal management and mechanical design all need to match the robot’s electrical and operating requirements.

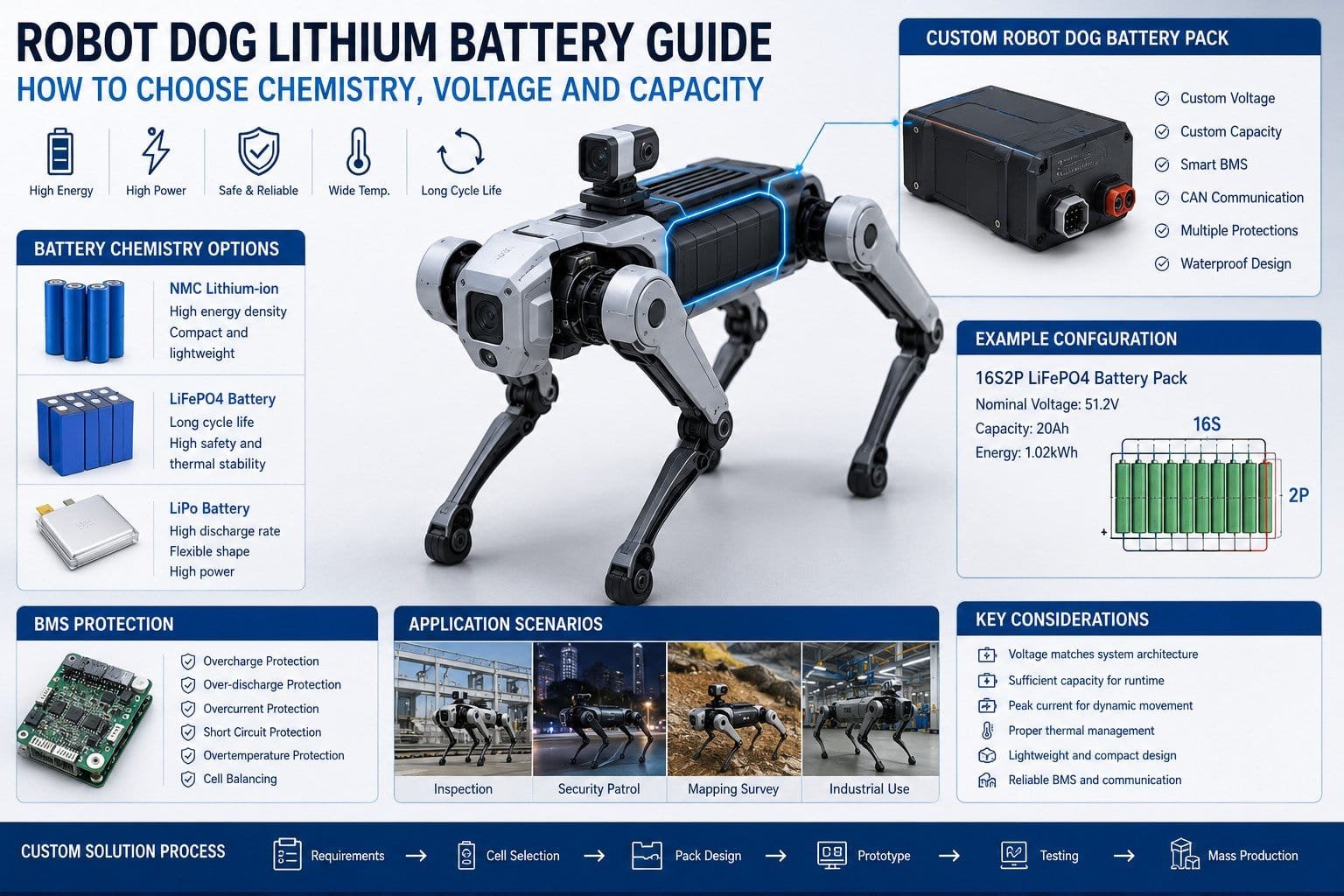

This guide explains how to select a lithium battery for robot dogs and what OEMs should consider when developing a custom battery pack.



1. What Is a Robot Dog Lithium Battery?

A robot dog lithium battery is a rechargeable battery pack designed to provide electrical power for quadruped robotic systems.

Depending on the robot’s architecture, the battery may supply power to:

• Leg motors and actuators
• Motor controllers
• Main control systems
• Cameras
• LiDAR
• Navigation sensors
• Communication modules
• Embedded computers
• Cooling fans
• Auxiliary electronics

The power demand changes according to the robot’s movement.

Walking on a flat surface, climbing a slope, accelerating, carrying a payload and recovering balance can all produce different current requirements.

For this reason, a robot battery should be evaluated according to the complete operating profile rather than only its nominal capacity.

---

2. Key Specifications for a Robot Dog Battery

Before selecting cells, the robot manufacturer should define several electrical and mechanical parameters.

Parameter	Requirement
Nominal voltage	Voltage required by the robot system
Maximum voltage	Maximum battery voltage allowed by the electronics
Minimum voltage	Minimum operating voltage
Capacity	Required battery capacity in Ah
Energy	Required energy in Wh
Continuous current	Current required during normal operation
Peak current	Short-duration current demand
Peak duration	Duration of the peak load
Battery weight	Maximum acceptable battery mass
Dimensions	Available battery installation space
Temperature	Expected operating and charging range
Communication	CAN, RS485, SMBus or other protocol
Charging	Charger voltage and current

These specifications provide the foundation for cell selection, battery configuration and BMS design.

---

3. How to Choose Battery Chemistry

Several lithium battery chemistries can be considered for robot dogs, including NMC lithium-ion, LiFePO4 and lithium polymer batteries.

Each chemistry has different characteristics.

Chemistry	Characteristics	Application Considerations
NMC	High energy density and compact design	Mobile robots with weight constraints
LiFePO4	Long cycle life and thermal stability	Industrial robots with frequent operation
LiPo	High discharge capability and flexible packaging	Robots with dynamic power requirements

The appropriate chemistry depends on the robot’s weight, power, operating environment, cycle requirements and available installation space.

---

3.1 NMC Lithium-Ion Battery

NMC lithium-ion cells can be considered when the robot needs substantial energy within a limited weight or volume.

This can be relevant for:

• Inspection robots
• Security robots
• Mapping robots
• Field robots
• Research platforms
• Mobile service robots

NMC batteries can provide a useful balance between energy capacity and pack size.

When selecting an NMC cell, however, engineers should evaluate more than energy density. Discharge rating, cycle requirements, operating temperature, cell quality and BMS protection should also be considered.

---

3.2 LiFePO4 Battery

LiFePO4, or lithium iron phosphate, is frequently considered for industrial battery applications where cycle life and thermal characteristics are important.

Potential applications include:

• Industrial robot dogs
• Outdoor inspection robots
• Autonomous patrol robots
• Agricultural robots
• Warehouse robots
• Mobile industrial equipment

LiFePO4 cells have a nominal voltage of approximately 3.2 V per cell.

For example:

16S LiFePO4

16 × 3.2 V = 51.2 V nominal

This configuration is commonly used for a 48 V-class battery system.

LiFePO4 can be suitable when the robot operates frequently and the battery needs to support repeated charge and discharge cycles.

---

3.3 Lithium Polymer Battery

Lithium polymer batteries can be considered for robot applications with high short-duration current demand.

A quadruped robot may require increased motor power during:

• Acceleration
• Climbing
• Jumping
• Rapid movement
• Direction changes
• Balance correction
• Payload handling

The discharge capability of the battery therefore needs to match the motor and controller requirements.

For example, if a 10 Ah battery is rated for 5C discharge:

10 Ah × 5C = 50 A

This is a theoretical current calculation. The actual pack capability must also consider the cell specification, BMS, wiring, connectors, busbars and thermal conditions.

---

4. How to Select Robot Dog Battery Voltage

Battery voltage must match the robot’s electrical architecture.

Before designing the battery pack, confirm:

• Motor controller input voltage
• Motor operating voltage
• DC/DC converter voltage range
• Maximum battery voltage
• Minimum system voltage
• Charging voltage
• BMS protection thresholds

A battery’s nominal voltage should not be selected independently from the robot’s motor controllers and electronic systems.

For example, a system designed around a 48 V-class DC bus may use a 13S lithium-ion configuration or a 16S LiFePO4 configuration, depending on the required operating voltage range.

The actual configuration should be determined from the system’s electrical specifications.

---

5. Understanding S and P Battery Configurations

Battery pack configurations are commonly expressed using S and P.

S = series connection

Series-connected cells increase voltage.

P = parallel connection

Parallel-connected cells increase capacity and current capability.

For example, consider a LiFePO4 battery using 3.2 V, 10 Ah cells.

A 16S2P configuration contains 32 cells.

Voltage

16 × 3.2 V = 51.2 V nominal

Capacity

2 × 10 Ah = 20 Ah

Nominal Energy

51.2 V × 20 Ah = 1,024 Wh

Therefore, the battery is approximately:

51.2 V 20 Ah / 1.02 kWh

The actual usable energy depends on the battery’s voltage range, discharge limits, temperature, BMS settings and system efficiency.

---

6. How to Calculate Robot Dog Battery Capacity

Battery capacity is normally specified in Ah, while battery energy is specified in Wh.

The basic calculation is:

Energy (Wh) = Voltage (V) × Capacity (Ah)

For example:

48 V × 20 Ah = 960 Wh

To estimate operating time:

Operating Time ≈ Battery Energy ÷ Average Power Consumption

If a robot consumes an average of 400 W:

960 Wh ÷ 400 W = 2.4 hours

This is a theoretical calculation.

Actual operating time can be affected by:

• Robot weight
• Payload
• Walking speed
• Terrain
• Incline
• Acceleration
• Motor efficiency
• Controller efficiency
• Sensor load
• Computing power
• Ambient temperature
• Battery condition
• Usable depth of discharge

For an accurate battery specification, robot manufacturers should provide a representative duty cycle.

---

7. Why Peak Current Matters

Capacity determines how much energy the battery can store, but it does not tell the complete story.

Robot dogs can experience short-duration current peaks when several actuators operate simultaneously.

For example, the robot may require additional power when:

• Starting from a stationary position
• Climbing stairs
• Walking uphill
• Carrying equipment
• Recovering balance
• Accelerating
• Changing direction

If the battery cannot provide the required current, the pack voltage may drop.

Excessive voltage sag can cause problems such as:

• Motor controller faults
• Controller resets
• BMS protection
• Communication interruptions
• Computer shutdown
• Robot movement interruption

Therefore, the battery should be evaluated according to both energy requirements and power requirements.

---

8. Battery Weight and Robot Performance

Battery weight is an important design parameter for quadruped robots.

A larger battery can provide more energy, but additional battery mass also increases the total robot weight.

This can affect:

• Payload capacity
• Motor workload
• Actuator requirements
• Balance
• Center of gravity
• Mechanical structure
• Operating efficiency

The objective should therefore be to develop a battery that meets the required energy and power targets within the robot’s available weight and installation space.

For mobile robotics, battery energy density and pack-level integration can become important design factors.

---

9. BMS Design for Robot Dog Batteries

The Battery Management System is an important component of a custom robot battery.

A BMS can provide functions such as:

• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Overtemperature protection
• Cell voltage monitoring
• Cell balancing
• Battery status monitoring

For robot applications, the BMS should be selected according to the robot’s current profile.

A battery pack with high peak current requirements may need a BMS with suitable current-handling capability and protection parameters.

---

9.1 Smart BMS Communication

A smart BMS can provide battery information to the robot controller.

Depending on the system design, communication may include:

• CAN
• RS485
• SMBus
• UART

Available data may include:

• Pack voltage
• Pack current
• State of charge
• Cell voltage
• Cell temperature
• Battery temperature
• Fault status
• Charging status

CAN communication can be useful when the robot’s control system needs battery information during operation.

---

10. Thermal Management

Robot dogs can operate in environments ranging from indoor laboratories to outdoor industrial sites.

Battery temperature can change according to:

• Discharge current
• Charging current
• Ambient temperature
• Enclosure design
• Operating duration
• Robot workload

High current operation can generate heat inside the battery pack.

A custom battery design may therefore include:

• Temperature sensors
• Thermal pads
• Heat-conductive materials
• Aluminum enclosures
• Cell spacing
• Heat dissipation structures
• BMS temperature protection

Thermal design should be evaluated together with the cell, BMS and enclosure.

---

11. Mechanical Design of a Robot Dog Battery Pack

Robot dog batteries are often installed in compact spaces.

A custom battery pack may require specific:

• Length
• Width
• Height
• Mounting points
• Connector location
• Communication port
• Charging port
• Locking mechanism
• Handle
• Waterproof enclosure

The battery also needs to withstand mechanical conditions associated with robot movement.

Internal cell fixation, welding structures, wiring and enclosure design should therefore be evaluated as one integrated system.

For outdoor robot dogs, water and dust protection may also be required.

Depending on the application, an appropriate IP-rated enclosure can be considered.

---

12. Testing Requirements

Battery testing should reflect the robot’s actual operating environment.

Electrical Testing

Common tests include:

• Capacity testing
• Charge testing
• Continuous discharge testing
• Peak current testing
• Voltage sag testing
• BMS protection testing
• Cell balancing verification

Thermal Testing

Testing may include:

• High-temperature operation
• Low-temperature operation
• Charging temperature
• Discharge temperature
• Temperature rise

Mechanical Testing

For mobile robots, mechanical validation may include:

• Vibration testing
• Shock testing
• Connector testing
• Mounting testing
• Enclosure inspection

For outdoor applications, additional environmental tests may include:

• Water resistance
• Dust resistance
• Humidity
• Temperature cycling

Testing should be performed on the complete battery pack rather than relying only on individual cell specifications.

---

13. Certifications and Transportation Requirements

Certification requirements depend on the battery design, destination market and final application.

For lithium battery transportation, UN 38.3 is an important requirement for applicable battery shipments.

Depending on the target market and product design, additional requirements may include:

• IEC 62133-2
• CE-related requirements
• RoHS
• UL standards
• Regional battery regulations

The applicable standards should be determined according to the specific product, market and intended use.

---

14. Custom Robot Dog Battery Development

For robot manufacturers, a custom battery supplier can support the development process from cell selection through mass production.

A typical OEM/ODM workflow can include:

Step 1: Define Requirements

Provide:

• Voltage
• Capacity
• Continuous current
• Peak current
• Peak duration
• Dimensions
• Weight
• Operating temperature
• Communication requirements

Step 2: Select Cells

The battery manufacturer evaluates suitable cell chemistry and cell specifications according to the robot’s requirements.

Step 3: Battery Pack Design

The engineering team develops:

• Series/parallel configuration
• BMS
• Wiring
• Connectors
• Enclosure
• Thermal structure

Step 4: Prototype

A prototype battery is produced for integration with the robot.

Step 5: Testing

The battery is tested under electrical, thermal, mechanical and environmental conditions relevant to the application.

Step 6: Optimization

The battery design can be adjusted according to test results and robot performance.

Step 7: Production

After design validation, the battery can move into pilot production and mass manufacturing.

---

15. Robot Dog Battery Selection Checklist

Before contacting a battery manufacturer, prepare the following information.

Electrical Requirements

• Nominal voltage
• Maximum voltage
• Minimum voltage
• Required capacity
• Average power
• Continuous current
• Peak current
• Peak duration
• Charging voltage
• Charging current

Mechanical Requirements

• Maximum dimensions
• Maximum weight
• Installation position
• Mounting method
• Connector type
• Connector location
• Waterproof requirements

Operating Requirements

• Indoor or outdoor operation
• Operating temperature
• Terrain
• Payload
• Target runtime
• Daily operating hours
• Charge/discharge cycles

Communication Requirements

• CAN
• RS485
• SMBus
• UART
• Other protocols

Compliance Requirements

• Target market
• Transportation requirements
• Required certifications
• Product standards

Providing these specifications allows the battery manufacturer to design a pack around the robot instead of selecting a generic battery based only on voltage and capacity.

---

Conclusion

A robot dog lithium battery needs to balance energy, power, weight, size, safety and system integration.

NMC lithium-ion batteries can be considered for robots where battery weight and package size are important. LiFePO4 can be considered for industrial applications with frequent cycling and long-term operation. Lithium polymer batteries may be suitable for applications with high short-duration discharge requirements.

Voltage should match the robot’s electrical architecture, while capacity should be calculated from actual power consumption and required operating time. Peak current also needs to be evaluated because quadruped robots can generate rapid changes in power demand.

For OEM robot manufacturers, a custom battery pack can integrate the cells, BMS, enclosure, connectors, communication interface and protection functions into one application-specific power system.

The right battery specification begins with the robot’s operating profile and ends with validation of the complete battery pack.
