DP-5/DP-5C Down Tube Ebike Battery
| Item | DP-5/DP-5C | |||||
| 셀 유형 | 18650 | Charge current | ≤ 5A | |||
| 최대 셀 | 52 | 56 | Charging port | DC2.1 Opt.3pin high current | ||
| 최대 연결 | 10S5P | 13S4P | 10S5P | 13S4P | Discharge current | 15A(Can be customized) |
| 속도 전압 | 36V | 48V | 36V | 48V/52V | Discharging port | 4pin/5pin |

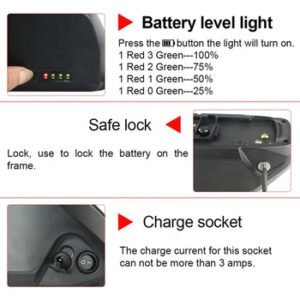

| 요금 용량 | 12.5Ah-17.5Ah | 10Ah-14Ah | 12.5Ah-17.5Ah | 10Ah-14Ah | LED indicator | 4 LED lights |
| 최대 용량/전력 | 630Wh | 672Wh | 630Wh | 672Wh | USB port | NO |

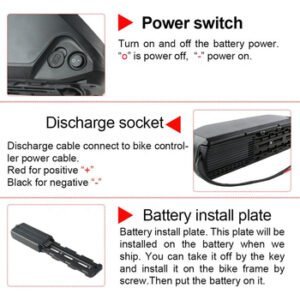

| BMS | Smart(UART,CAN,RS485)&Standard | Power switch | YES | |||

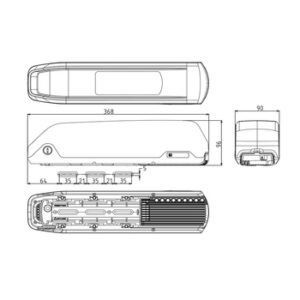

| Size(mm)L*W*H | 368*90*96 | Case material | ABS+Aluminun | |||
| Controller box | YES | NO | Optional parts | Base block Switch hole cover Spring lock |
||
