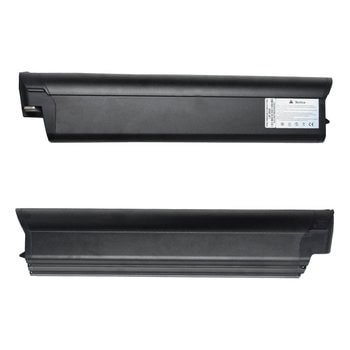

Inner Battery EEL Integrated Ebike battery
| Item | IE-MINI/IE-PRO(ManYu) | |||||
| 셀 유형 | 18650 | Charge current | ≦5A | |||
| 최대 셀 | 40 | 30 | 52 | 40 | Charging port | DC2.1 Opt.3pin high current |
| 최대 연결 | 10S4P | 10S3P | 13S4P | 10S4P | Discharge current | 15A(Can be customized) |
| 속도 전압 | 36V | 48V | 36V | Discharging port | 2pin Opt.6pin | |
| 요금 용량 | 10Ah-14Ah | 7.5Ah-10.5Ah | 10Ah-14Ah | 10Ah-14Ah | LED indicator | single LED with 3 colors |
| 최대 용량/전력 | 504Wh | 378Wh | 672Wh | 504Wh | USB port | NO |
| BMS | Smart(UART,CAN,RS485)&Standard | Power switch | NO | |||

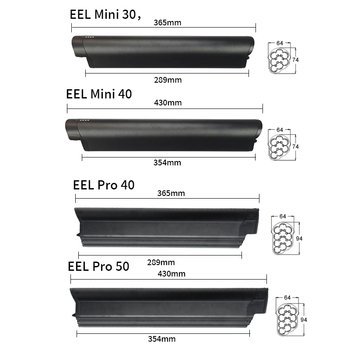

| Size(mm)L1*L2*W*H | 430*354*64*74 | 365*289*64*74 | 430*354*64*94 | 365*289*64*94 | Case material | ABS+Aluminun |
