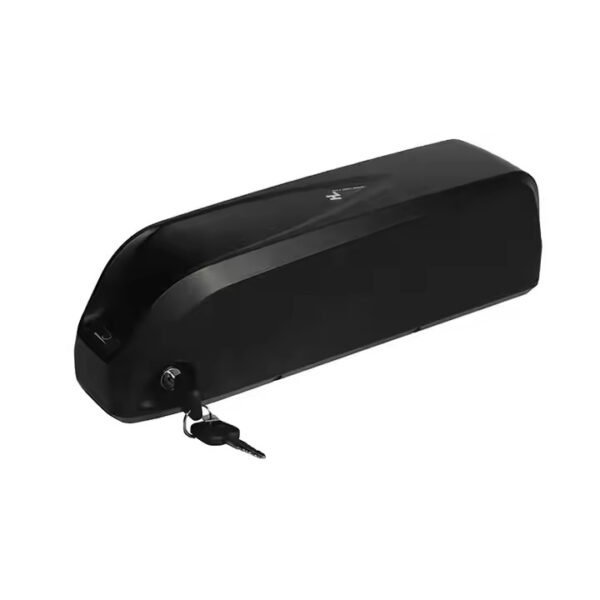

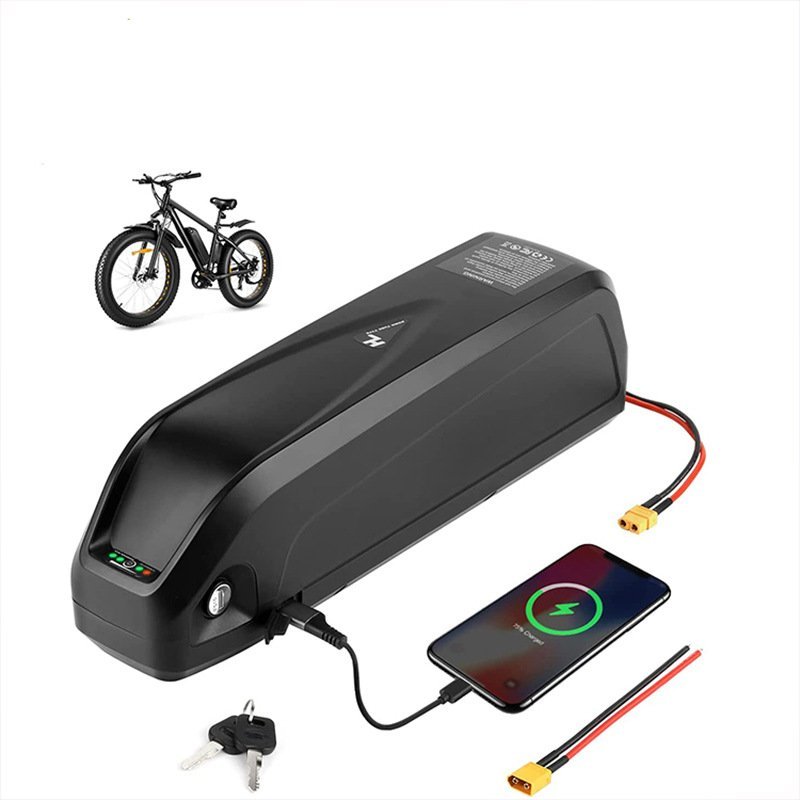

Hailong 1-2 Down Tube Battery
Model number: FP-HL-II-65
Max cell space: 18650 65 pcs
Configration: 10S6P/13S5P
Material: PC+ABS
Charging port: 3pin CANNON(customized)
Discharging port: Self-made 4pin(customized)
Lock: Mechanical lock

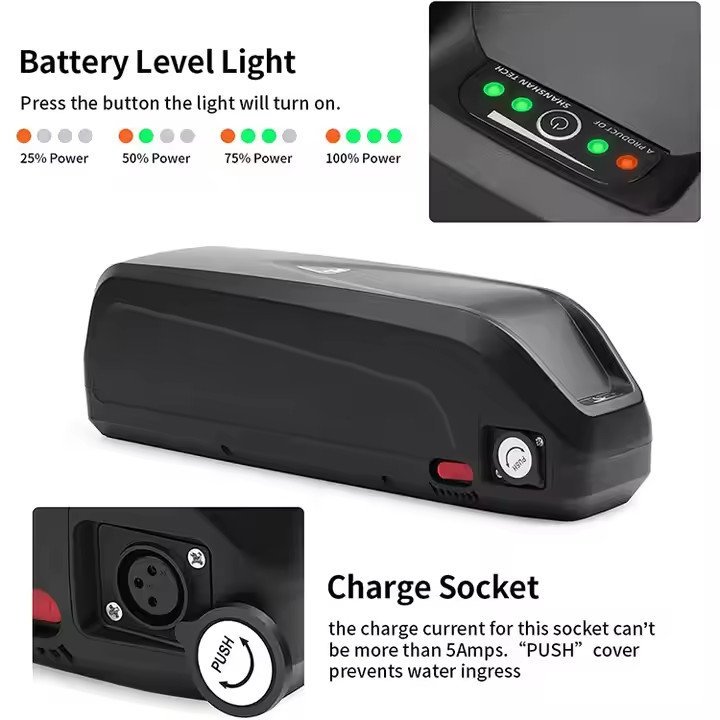

Capacity indicator: 4 lever LED capacity indicator
| 셀 유형 | 18650 | 21700 | Charge current | ≦5A | ||
| 최대 셀 | 65 | 30 | Charging port | 3pin CANNON | ||
| 최대 연결 | 10S6P | 13S5P | 10S3P | 13S2P | Discharge current | 15A(Can be customized) |
| 속도 전압 | 36V | 48V | 36V | 48V | Discharging port | Self-made 4pin |
| 요금 용량 | 15Ah-21Ah | 12.5Ah-17.5Ah | 15Ah | 10Ah | LED indicator | 4 LED lights |
| 최대 용량/전력 | 756Wh | 840Wh | 540Wh | 540Wh | USB port | YES |
| BMS | Smart(UART,CAN,RS485)&Standard | Power switch | YES | |||

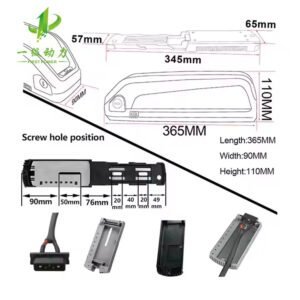

| Size(mm)L*W*H | 367.4*90.3*111 | Case material | PC+ABS | |||
| Controller box | YES | Lock | Mechanical lock | |||
