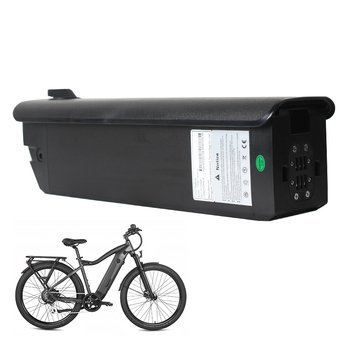

Rhino 5 Integrated Ebike battery

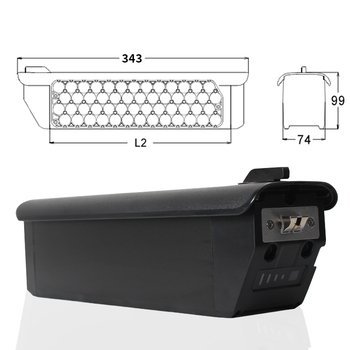

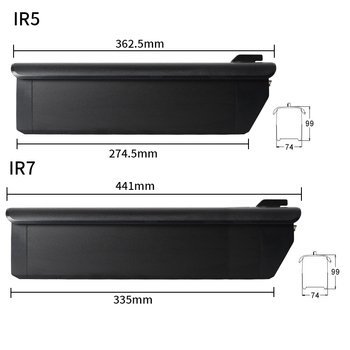

Length*width :343*99mm

Voltage: 36V /48V

Capacity: 10 Ah/11.6 Ah/12.5 Ah/12.8 Ah/14 Ah/14.5 Ah/16 Ah/17.5 Ah

Rhino 5 Integrated Ebike battery IR-5-T

Parameters	48V 10Ah	48V 11.6Ah	48V 12.8Ah	48V 14Ah
Energy	480Wh	556Wh	614Wh	672Wh
Composed Type	13S4P	13S4P	13S4P	13S4P
Battery Pack Cell	2500 mAh	2900 mAh	3200 mAh	3500mAh
Build-in BMS	25Amp,if you want other BMS please contact customer service
Puissance du moteur	250-500W
Approx Riding Mileage	30-60KM	34-69 KM	38-76KM	42-84KM
Charger Current	2-5A
Charging time	3-8 Hours
Limited Charge Voltage	54.6V
Discharge cut-off Voltage	36.4V±0.3V
Charging temperature	0℃~45℃
Discharge temperature	-20℃~65℃
Cycle de vie	≥80% capcity after 1000 cycles
Battery Dimensions	3437499mm

Parameters	36V 12.5Ah	36V 14.5Ah	36V 16Ah	36V 17.5Ah
Energy	450Wh	522Wh	576Wh	630Wh
Composed Type	10S5P	10S5P	10S5P	10S5P
Battery Pack Cell	2500 mAh	2900 mAh	3200 mAh	3500mAh
Build-in BMS	20Amp,if you want other BMS please contact customer service
Puissance du moteur	250-500W
Approx Riding Mileage	37-75KM	43-87KM	48-96KM	52-105KM
Charger Current	2-5A
Charging time	3-8 Hours
Limited Charge Voltage	42V
Discharge cut-off Voltage	28V±0.3V
Charging temperature	0℃~45℃
Discharge temperature	-20℃~65℃
Cycle de vie	≥80% capcity after 1000 cycles
Battery Dimensions	3437499mm

Item	Rhino 5
Type de cellule	18650		21700	Charge current	≦3A
Nombre maximal de cellules	52		30	Charging port	N/A
Connexion maximale	13S4P	10S5P	10S3P	Discharge current	15A(Can be customized)
Taux de tension	48V	36V	36V	Discharging port	N/A
Taux de capacité	10Ah-14Ah	12.5Ah-17.5AH	15Ah	LED indicator	N/A
Capacité maximale/puissance	672Wh	630Wh	540Wh	USB port	N/A
BMS	Smart(UART,CAN,RS485)&Standard			Power switch	N/A
Size(mm)LWH	/			Case material	ALUMINIUM+PC+ABS
Controller box	/			Lock	N/A

Rhino 5 Integrated Ebike battery
