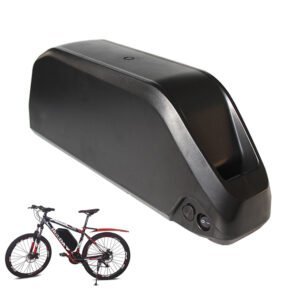

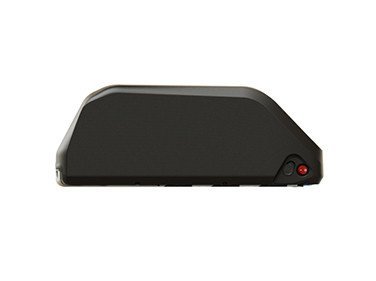

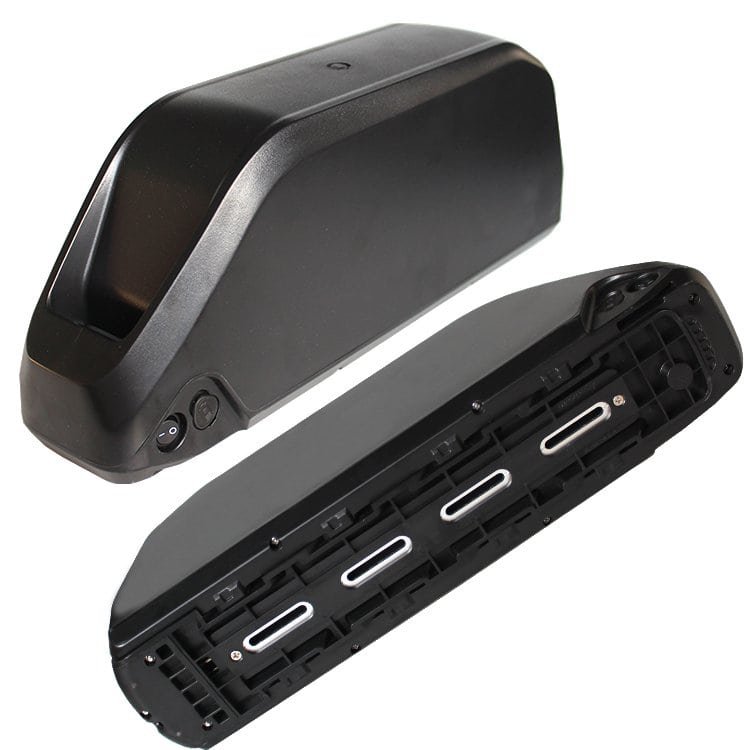

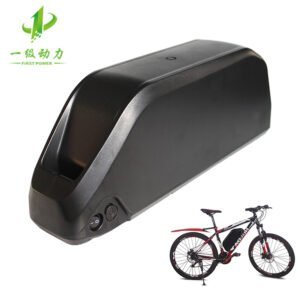

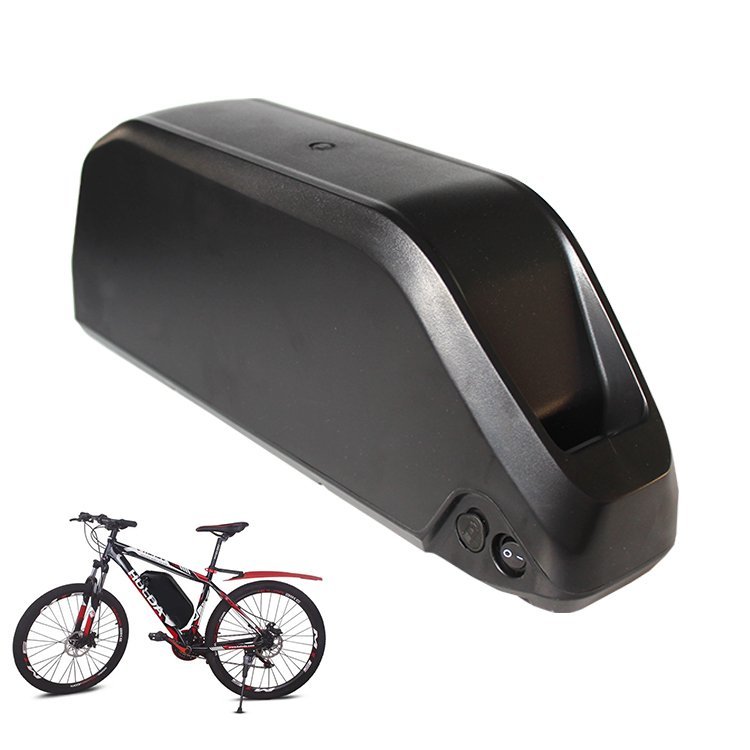

Polly DP-9/DP-9C Down Tube Electric Bicycle Battery

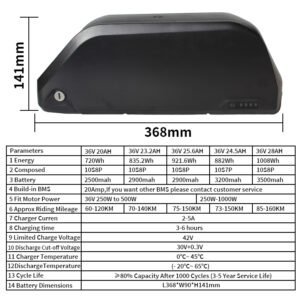

| Item | DP-9C/DP-9 | |||||
| Zelltyp | 18650 | Charge current | ≤ 5A | |||

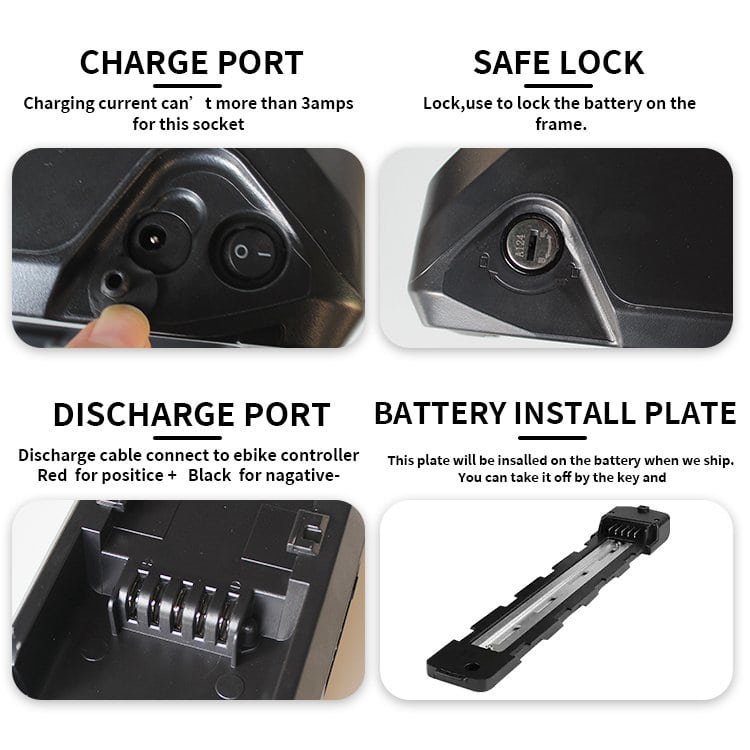

| Maximale Zellen | 84 | 91 | Charging port | DC2.1 Opt.3pin high current | ||
| Max Verbindung | 10S8P | 13S6P | 10S9P | 13S7P | Discharge current | 15A(Can be customized) |
| Rate Spannung | 36V | 48V/52V | 36V | 48V | Discharging port | 4pin/5pin |
| Rate Kapazität | 20Ah-28Ah | 15Ah-21Ah | 22.5Ah-31.5Ah | 17.5Ah-24.5Ah | LED indicator | 4 LED lights |
| Maximale Kapazität/Leistung | 1008Wh | 1008Wh/1092Wh | 1134Wh | 1176Wh | USB port | NO |
| BMS | Smart(UART,CAN,RS485)&Standard | Power switch | YES | |||

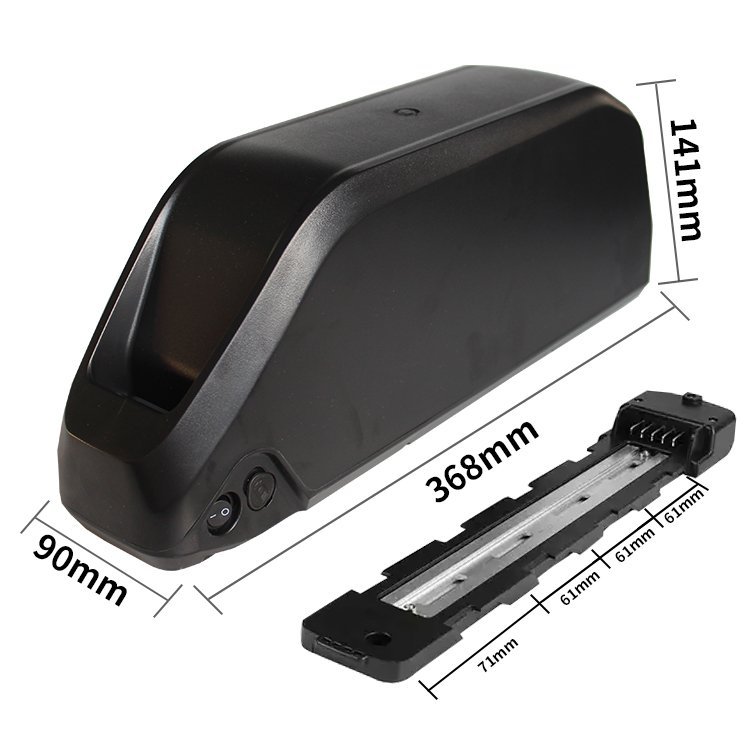

| Size(mm)L*W*H | 368*90*141 | Case material | ABS+Aluminun | |||
| Controller box | YES | NO | Lock | YES | ||
