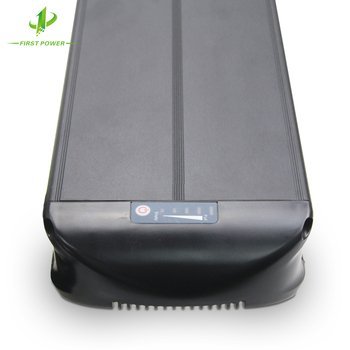

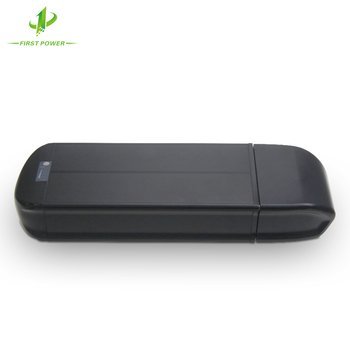

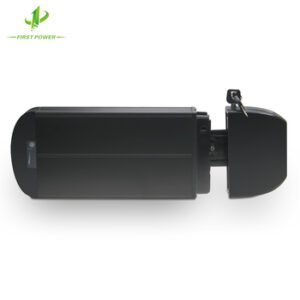

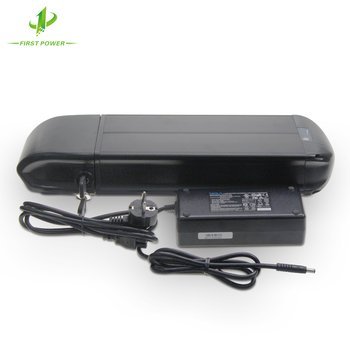

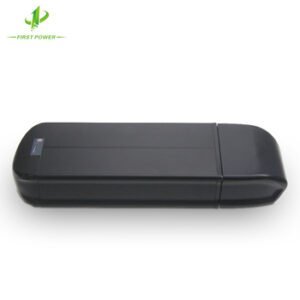

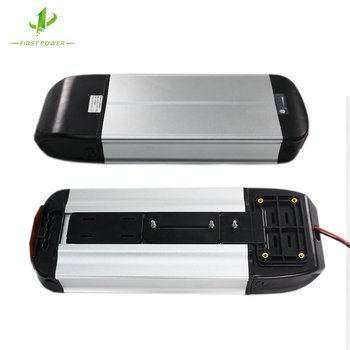

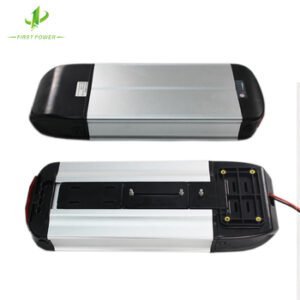

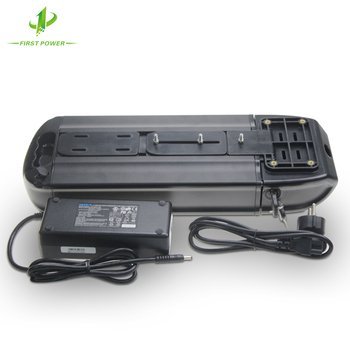

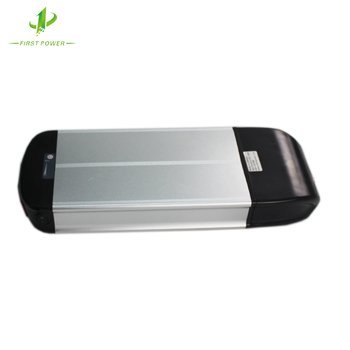

Rear Rack Battery DOLPHIN Ebike Battery
| Item | SSE-003 DOLPHIN Ⅰ | |||||
| Zelltyp | 18650 | Charge current | ≦3A | |||
| Maximale Zellen | 52 | Charging port | DC2.1 port | |||
| Max Verbindung | 10S5P | 13S4P | Discharge current | 15A(Can be customized) | ||
| Rate Spannung | 36V | 48V | Discharging port | Self-made 2PIN | ||
| Rate Kapazität | 12.5Ah-17.5AH | 10Ah-14Ah | USB port | N/A | ||
| Maximale Kapazität/Leistung | 630Wh | 672Wh | Power switch | N/A | ||
| BMS | Smart(UART,CAN,RS485)&Standard | Case material | ALUMINIUM 6061+PC+ABS | |||
| Size(mm)L*W*H | 438.5*150*92.2 | LED indicator | 5 level LED lights | |||
| Controller space | N/A | Lock | Mechanical lock | |||
| Item | SSE-004 DOLPHIN Ⅱ | |||||
| Zelltyp | 18650 | Charge current | ≦3A | |||
| Maximale Zellen | 52 | Charging port | DC2.1 port | |||
| Max Verbindung | 10S5P | 13S4P | Discharge current | 15A(Can be customized) | ||
| Rate Spannung | 36V | 48V | Discharging port | Self-made 2PIN | ||
| Rate Kapazität | 12.5Ah-17.5AH | 10Ah-14Ah | USB port | N/A | ||
| Maximale Kapazität/Leistung | 630Wh | 672Wh | Power switch | N/A | ||
| BMS | Smart(UART,CAN,RS485)&Standard | Case material | ALUMINIUM 6061+PC+ABS | |||
| Size(mm)L*W*H | 438.5*150*92.2 | LED indicator | 5 level LED lights | |||
| Controller space | N/A | Lock | Mechanical lock | |||
| Item | SSE-005 DOLPHIN Ⅲ | |||||
| Zelltyp | 18650 | Charge current | ≦3A | |||
| Maximale Zellen | 52 | Charging port | DC2.1 port | |||
| Max Verbindung | 10S5P | 13S4P | Discharge current | 15A(Can be customized) | ||
| Rate Spannung | 36V | 48V | Discharging port | Self-made 2PIN | ||
| Rate Kapazität | 12.5Ah-17.5AH | 10Ah-14Ah | USB port | N/A | ||
| Maximale Kapazität/Leistung | 630Wh | 672Wh | Power switch | N/A | ||
| BMS | Smart(UART,CAN,RS485)&Standard | Case material | ALUMINIUM 6061+PC+ABS | |||
| Size(mm)L*W*H | 432.6*156*67.6 | LED indicator | 5 level LED lights | |||
| Controller space | N/A | Lock | Mechanical lock | |||
