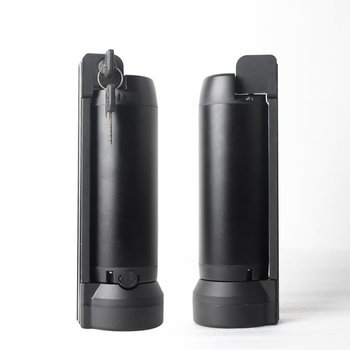

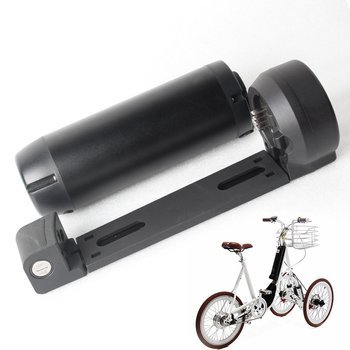

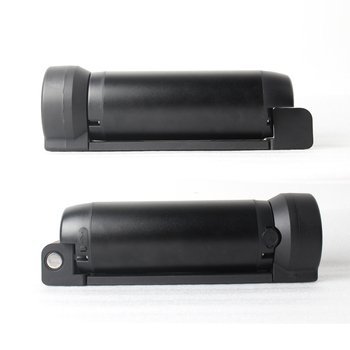

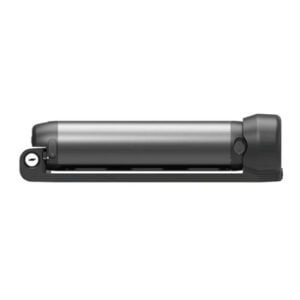

Down Tube Cuttle Ebike Battery
| Item | DC-21700-1C/ DC-21700-2C(Haitu) | |||||
| Zelltyp | 21700 | Charge current | ||||

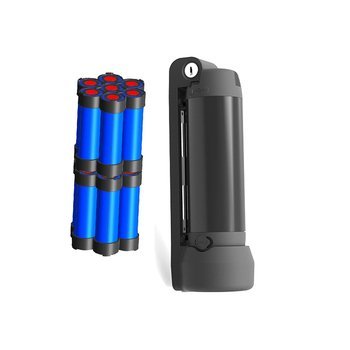

| Maximale Zellen | 14 | 21 | Charging port | DC2.1 Opt.3pin high current | ||
| Max Verbindung | 13S1P | 10S2P | Discharge current | 15A(Can be customized) | ||

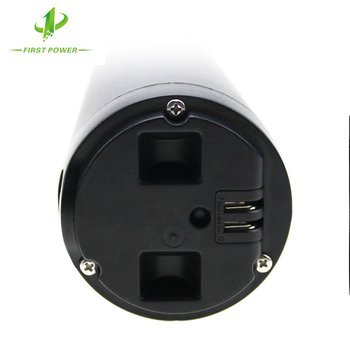

| Rate Spannung | 24V | 24V | 36V | Discharging port | 6pin | |

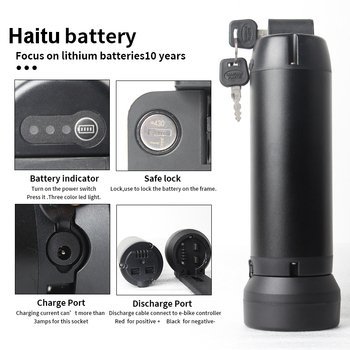

| Rate Kapazität | 5Ah-7AH | 5Ah-7AH | LED indicator | single LED with 3 colors | ||

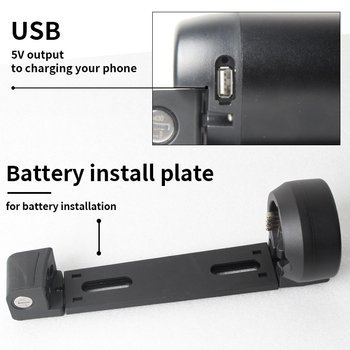

| Maximale Kapazität/Leistung | 168Wh | 24V15Ah | 36V10Ah | USB port | YES | |
| BMS | Smart(UART,CAN,RS485)&Standard | Power switch | NO | |||
| Size(mm)L1*L2*W*H1*H2 | 277*160*74*70.5*86 | 347*230*74*70.5*86 | Case material | ABS+Aluminun | ||

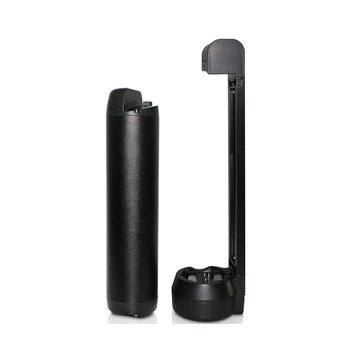

| Controller box | YES | Optional parts | Spring lock/Base block | |||
