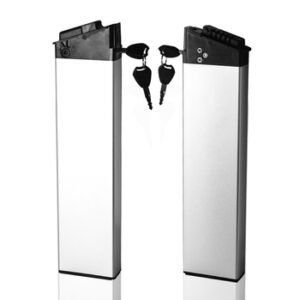

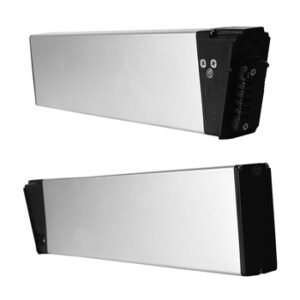

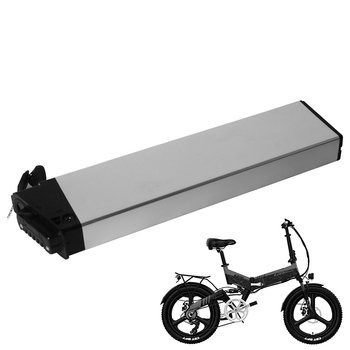

ALX009 Battery for Folding Ebike
Maximum number of cells
18650-75 cells
Aluminum tube length L(mm): 345mm
21700-40 cells
Aluminum tube length L(mm): 345mm
48v 13Ah Packing Dimension:462*175*160mm
48v 17.5Ah Packing Dimension:470*180*170mm
| Parameters | 36V 12.5Ah | 36V 15Ah | 36V 17.5Ah | 36V 21Ah |
| Energy | 450Wh | 540Wh | 630Wh | 756Wh |
| Composed Type | 10S5P | 10S5P | 10S5P | 10S5P |
| Battery Pack Cell | 2500 mAh | 2500 mAh | 3500mAh | 3500mAh |
| Build-in BMS | 20 Amps,if you want other BMS Please contact customer service | |||
| Motorleistung anpassen | 250W-750W | |||
| Approx Riding Mileage | 40-80KM | 52-105KM | 57-115KM | 63-126KM |
| Charger current | 2-5A | |||
| Charging time | 3-8 hours | |||
| Limited charge Voltage | 42V | |||
| Discharge Cutt-off Voltage | 28±0.3V | |||
| Charger Temperature | 0℃-45℃ | |||
| Discharge Temperature | -20℃~65℃ | |||
| Zyklus Leben | ≥80% Capacity After 1000 Cycles(3-5 Years Life) | |||

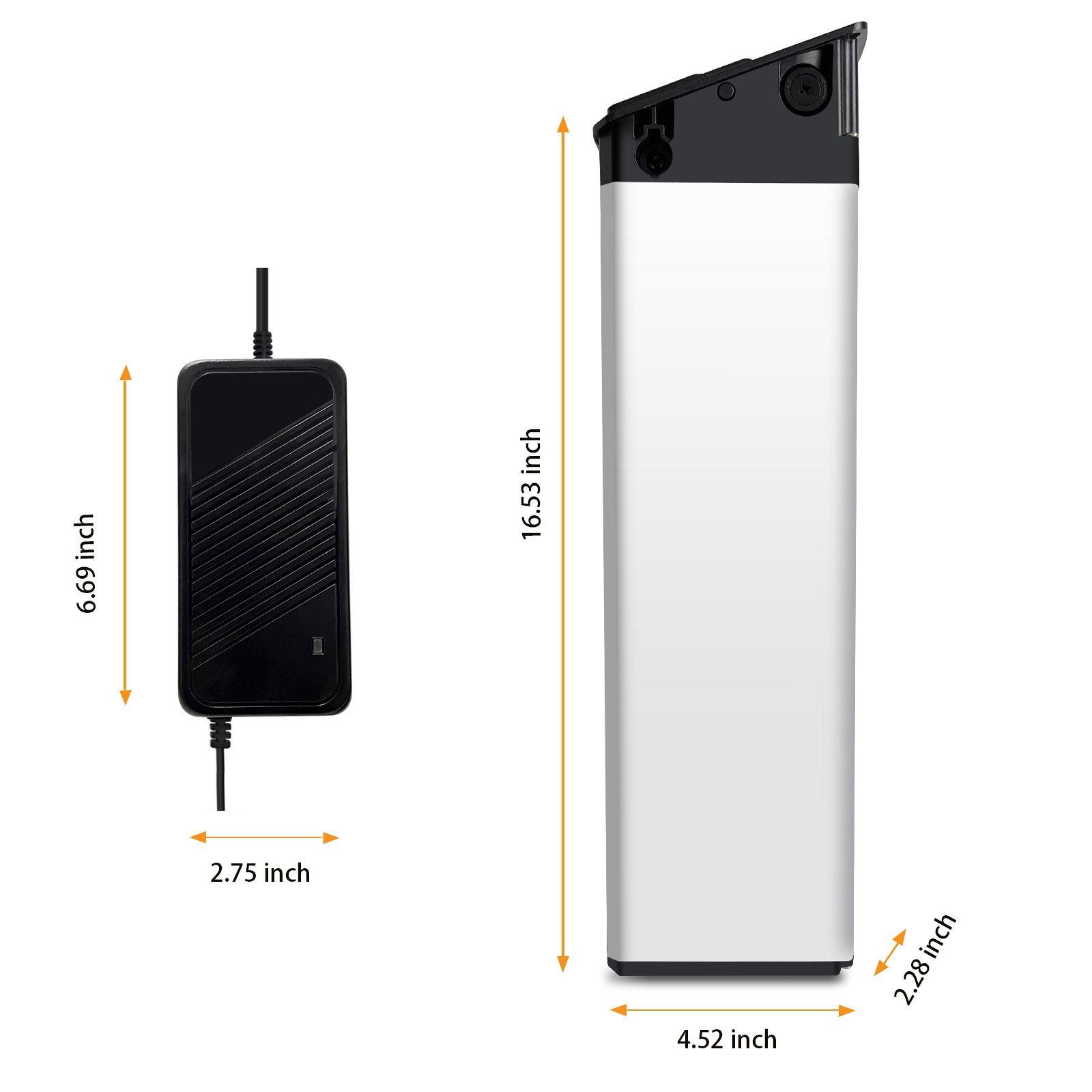

| Battery Dimensions | 420*115*58mm | |||

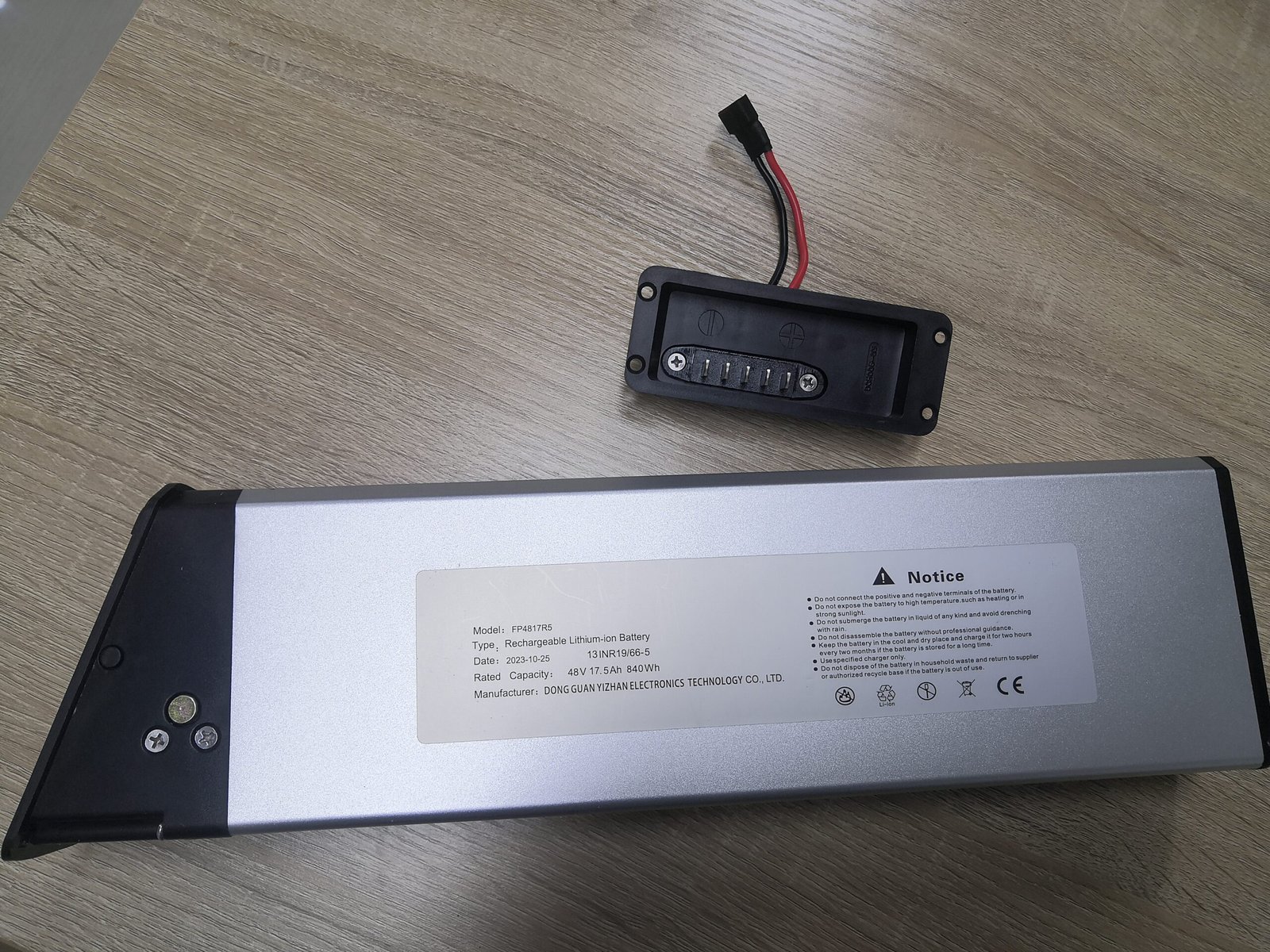

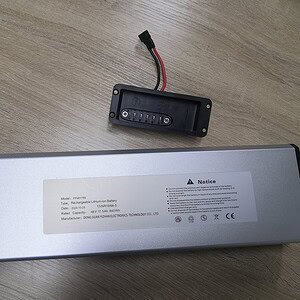

| Parameters | 48V 12.5Ah | 48V 14.5Ah | 48V 16Ah | 48V 17.5Ah |
| Energy | 696Wh | 696Wh | 768Wh | 840Wh |
| Composed Type | 13S5P | 13S5P | 13S5P | 13S5P |
| Battery Pack Cell | 2500 mAh | 2900 mAh | 3200mAh | 3500mAh |
| Build-in BMS | 30 Amps,if you want other BMS Please contact customer service | |||
| Motorleistung anpassen | 250W-1000W | |||
| Approx Riding Mileage | 40-87KM | 43-87KM | 48-96KM | 52-105KM |
| Charger current | 2-5A | |||
| Charging time | 3-8 hours | |||
| Limited charge Voltage | 54.6V | |||
| Discharge Cutt-off Voltage | 36.4V±0.3V | |||
| Charger Temperature | 0℃-45℃ | |||
| Discharge Temperature | -20℃~65℃ | |||
| Zyklus Leben | ≥80% Capacity After 1000 Cycles(3-5 Years Life) | |||
| Battery Dimensions | 420*115*58mm | |||
