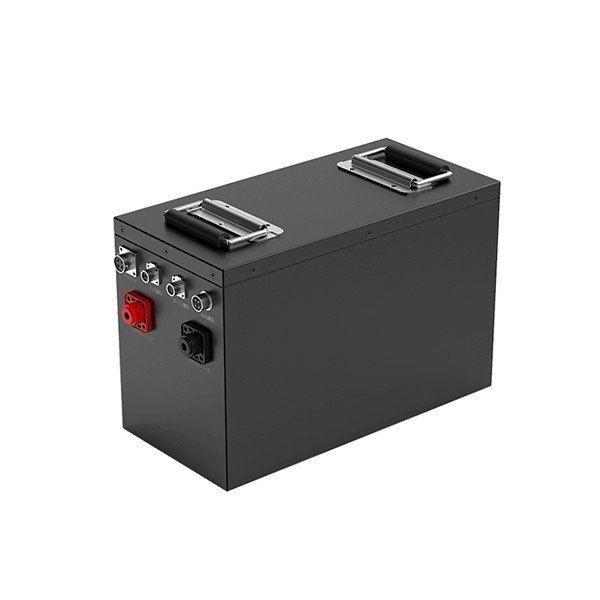

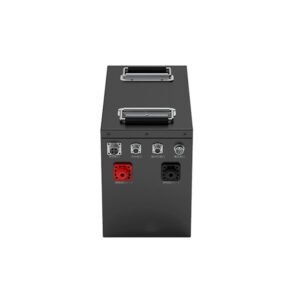

25V 50Ah quadratischer LiFePO4-Akkupack

Nominal voltage: 25.6V

Nominal capacity: 50.0Ah

Charging voltage: 29.2V

Charging current: ≤25.0A

Discharging current: 50.0A

Peak discharging current: 60A

Discharging cutoff voltage: 20.0V

Internal resistance: ≤100mΩ

Battery weight: ≤12.0kg

Product dimensions: 170×240×350 mm

Charging temperature: 0–55°C

Discharge temperature: -20–55°C

Storage temperature: -20–45°C

Batteriegehäuse: Gehäuse aus Blech

Smart lithium-ion protection: Battery management (RS485, CAN protocol), short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, over-temperature protection, etc.

Application areas: Robotics, UPS, energy storage
